Your switchboard is one of those things you never think about until something goes wrong, and by then, it’s often been quietly signalling a problem for years. Knowing the warning signs that you need a switchboard upgrade can be the difference between a straightforward, planned replacement and an urgent, after-hours emergency callout.
At Top Electricians Sydney, we assess switchboards across Greater Sydney every week, and these ten signs come up again and again as the clearest indicators that it’s time to act.

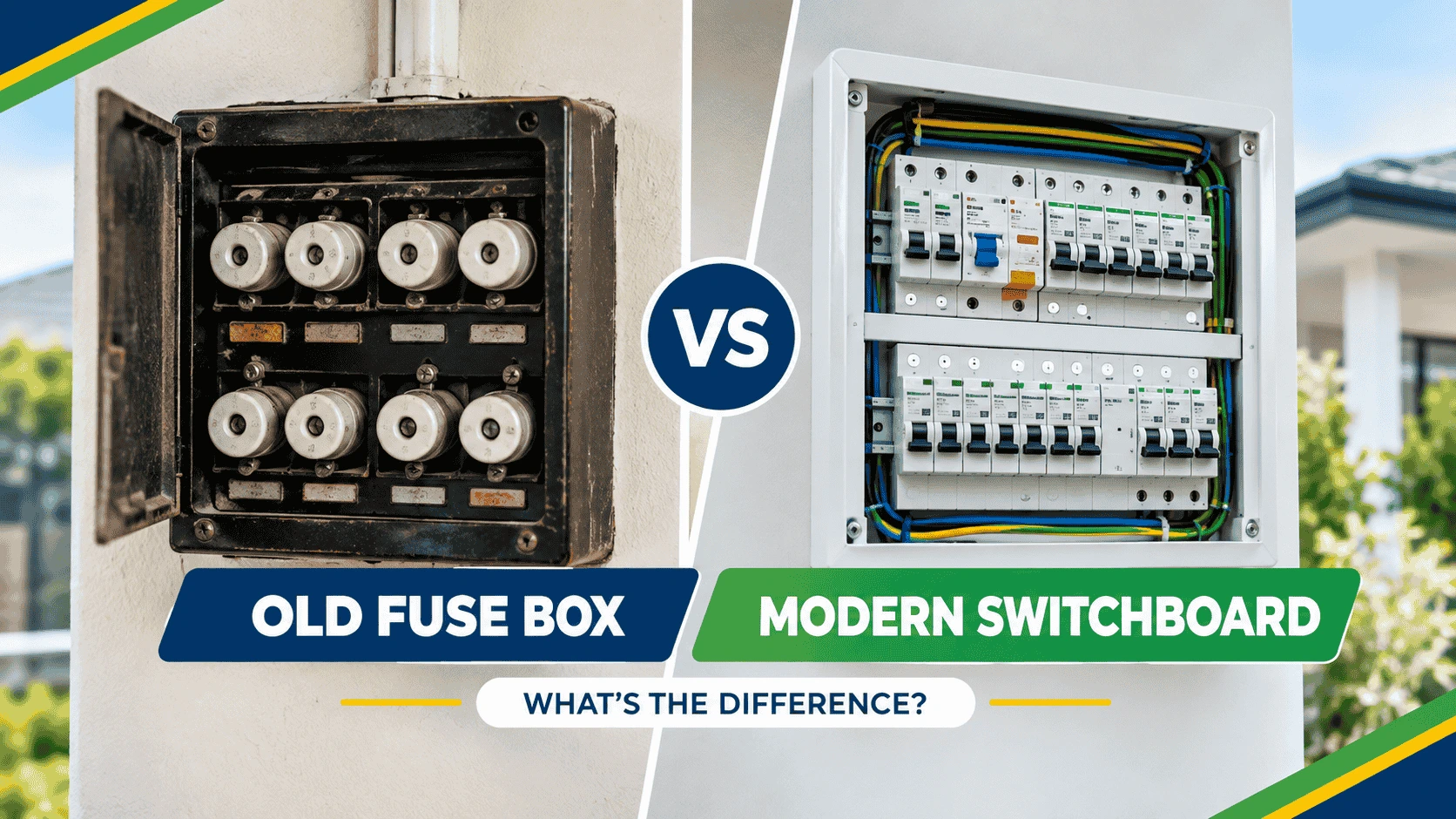

1. Your Board Still Has Ceramic Fuses
If you open your switchboard and see round, ceramic fuse holders instead of modern switches, that’s one of the strongest signs you need a switchboard upgrade. Ceramic fuses, common in homes built before the 1980s, were replaced by circuit breakers decades ago because they’re slower to respond to faults and don’t offer the electric shock protection modern RCDs provide. Our switchboard upgrade service replaces these boards with fully compliant, modern equivalents.
2. Your Safety Switch Keeps Tripping
An RCD (residual current device, commonly called a safety switch) that trips occasionally when a specific appliance is used might just indicate that appliance is faulty. But if it trips repeatedly and unpredictably, or won’t reset at all, that’s often a sign your board’s protective equipment is failing or overloaded, not just the appliance connected to it.
3. There’s No RCD Protection at All
Under current NSW electrical safety standards, RCDs are required on all power and lighting circuits. If your board predates these requirements and has never been updated, you don’t have this protection, meaning a fault could result in serious electric shock rather than a safely tripped switch. This alone is enough reason that you need a switchboard upgrade, regardless of any other symptoms.
4. You’re Planning Solar, an EV Charger, or Ducted Air Conditioning
Older switchboards were sized for the electrical demands of decades ago, not for a household running solar inverters, EV chargers, and ducted air conditioning simultaneously. If you’re planning any of these additions, a load assessment will likely confirm you need a switchboard upgrade to safely accommodate the extra draw, rather than risking an overloaded board. Larger demands sometimes call for a move to three-phase power, which our Level 2 electricians can assess and install.
5. You Notice Burning Smells or Discolouration
A burning or acrid smell near your switchboard, or visible scorch marks, browning, or melted plastic around switches, are genuine warning signs of overheating. This isn’t a “wait and see” situation. If you notice this, stop using the affected circuits and call an emergency electrician immediately.
6. Your Board Has an Asbestos Backing Panel
Many switchboards installed before the late 1980s used asbestos backing panels behind the wiring. If your property hasn’t had its switchboard assessed or replaced since then, this is a real possibility, and it’s a serious reason you need a switchboard upgrade with proper asbestos decommissioning as part of the process, not just a like-for-like swap.
7. Lights Flicker or Dim When Appliances Switch On
Noticeable flickering or dimming when a large appliance, like an air conditioner or oven, switches on can indicate your board or wiring is struggling to handle the load. While this can sometimes point to a wiring issue elsewhere in the property, an undersized or ageing switchboard is a common underlying cause.
8. You’re Buying, Selling, or Renovating
A pre-purchase inspection or renovation is one of the most common times homeowners discover they need a switchboard upgrade, since older boards frequently fail to meet current compliance standards. Our electricity meter compliance guide covers the related metering side of this process. Addressing it proactively, rather than as a last-minute condition of sale, generally gives you more control over cost and timing.
9. Circuit Breakers Feel Warm to the Touch
A switchboard or individual circuit breaker that feels warm or hot under normal conditions is not something to ignore. This can indicate an overloaded circuit, a loose connection, or deteriorating internal components, all of which point toward the board needing proper assessment rather than continued use.
10. It’s Been Decades Since Your Last Compliance Check
If you genuinely don’t know the age or condition of your switchboard, and it’s been years, or decades, since a licensed electrician last inspected it, that alone is reason enough for an assessment. A board that seems to be working fine on the surface can still be missing modern protection or quietly deteriorating internally.
What Happens Once You Confirm You Need a Switchboard Upgrade
If one or more of these signs applies to your property, the next step is a proper on-site assessment, not a guess based on the board’s age alone. A licensed electrician will check for ceramic fuses, missing RCD protection, overheating, asbestos backing panels, and available capacity, then provide a fixed-price quote before any work begins. Our guide on the switchboard replacement process walks through exactly what that involves, step by step, and our guide on switchboard upgrade time covers how long you should realistically expect the work to take.
Frequently Asked Questions
How urgent is it if I have ceramic fuses?
It’s not necessarily an immediate emergency, but it does mean your board lacks the modern safety switch protection required under current standards. It’s worth having assessed and scheduled for upgrade rather than left indefinitely.
Can I just replace one fuse instead of the whole board?
Individual ceramic fuses can technically be replaced, but this doesn’t address the underlying issue, the board as a whole lacks modern RCD protection and circuit breaker technology. A proper assessment will confirm whether a full upgrade is the safer long-term option.
Does a switchboard upgrade increase my home’s value?
It can, particularly for older homes where an outdated board is a common flag in pre-purchase inspections. A compliant, modern switchboard removes a common negotiating point for buyers and reduces the risk of last-minute settlement delays.
How do I know if my board has an asbestos backing panel?
Visual signs aren’t always reliable, since asbestos panels can look similar to other materials. If your switchboard hasn’t been assessed since before the late 1980s, it’s worth having a licensed electrician check rather than assuming either way.
Get Your Switchboard Properly Assessed
If any of these ten signs sound familiar, it’s worth having your switchboard properly assessed before a manageable issue becomes an emergency. Learn more about our switchboard upgrades and repairs service, or check our switchboard upgrade cost guide for pricing. For background on what a switchboard actually does, see our guide on what an electrical switchboard is.
Conclusion: Upgrade Your Sydney Switchboard Before Problems Become Emergencies
A switchboard is the silent guardian of a home’s electrical safety, and if it’s outdated, overloaded, or missing modern protection, it’s only a matter of time before it fails. Top Electricians Sydney’s licensed team combines 17+ years of experience, in-house Level 2 ASP capabilities, and transparent pricing to deliver safe, reliable, future-proof electrical upgrades, backed by rapid-response emergency coverage across Greater Sydney. Local technicians are ready to deploy across Western Sydney, the Southern Suburbs, the Northern Suburbs, the Eastern Suburbs, and Central Sydney, offering 24/7 coverage for any residential, commercial, or industrial emergency.
📞 Call today on 0431 460 141 or request a free quote online. Let Sydney electrical specialists assess your switchboard, explain your options, and recommend the safest solution for your property.
